Use-case – Diagnosing an automotive engine

This use-case is taken from the conference paper:

5. Frisk, M. Krysander, and D. Jung “A Toolbox for Analysis and Design of Model Based Diagnosis Systems for Large Scale Models” (https://doi.org/10.1016/j.ifacol.2017.08.504), IFAC World Congress, Toulouse, France, 2017.

where the interested reader can find more complete explanations and a full set of references for explainations to used concepts and methods.

Outline

1. Introduction

2. Modelling

3. Diagnosability Analysis

   • A canonical decomposition

   • Fault isolability matrices

4. Residual Generator Analysis and Design

   • Low-index and observability properties of sub-models

   • Sequential residual generation

5. Evaluation on Test Cell Measurements

   • Running residual generators on data

   • Evaluating fault isolation performance

Introduction

The air path of an automotive gasoline engine is important for understanding how much fuel to inject, how to keep combustion emissions low, protect exhaust catalysts, and optimize efficiency. This system is not only industrially relevant, but it is also an interesting system for academic basic research due to its complexity, its highly interconnected subsystems due to turbocharging, and a system that is challenging to model accurately. The model used here is based on a control-oriented model of the air-path consisting of pressure dynamics that describe flows and thermodynamic relations to describe temperatures and heat flows. The model has 94 equations and 14 states. The model is highly non-linear and has external, mapped, functions implemented as lookup-tables, and hybrid mode-switching statements (if-statements).

The measurements/control outputs used, in total 10, are: pressure sensors (throttle, intake manifold, ambient), temperature sensors (throttle, ambient), intake air mass flow, engine speed, throttle position, waste-gate position, and commanded amount of injected fuel. The considered faults, in total 11, are: Clogging of the air filter, leakages (before the compressor, after throttle, before intercooler), stuck intake valve, increased turbine friction, sensors (throttle position, air mass flow, intake manifold pressure, pressure before throttle, temperature before throttle)

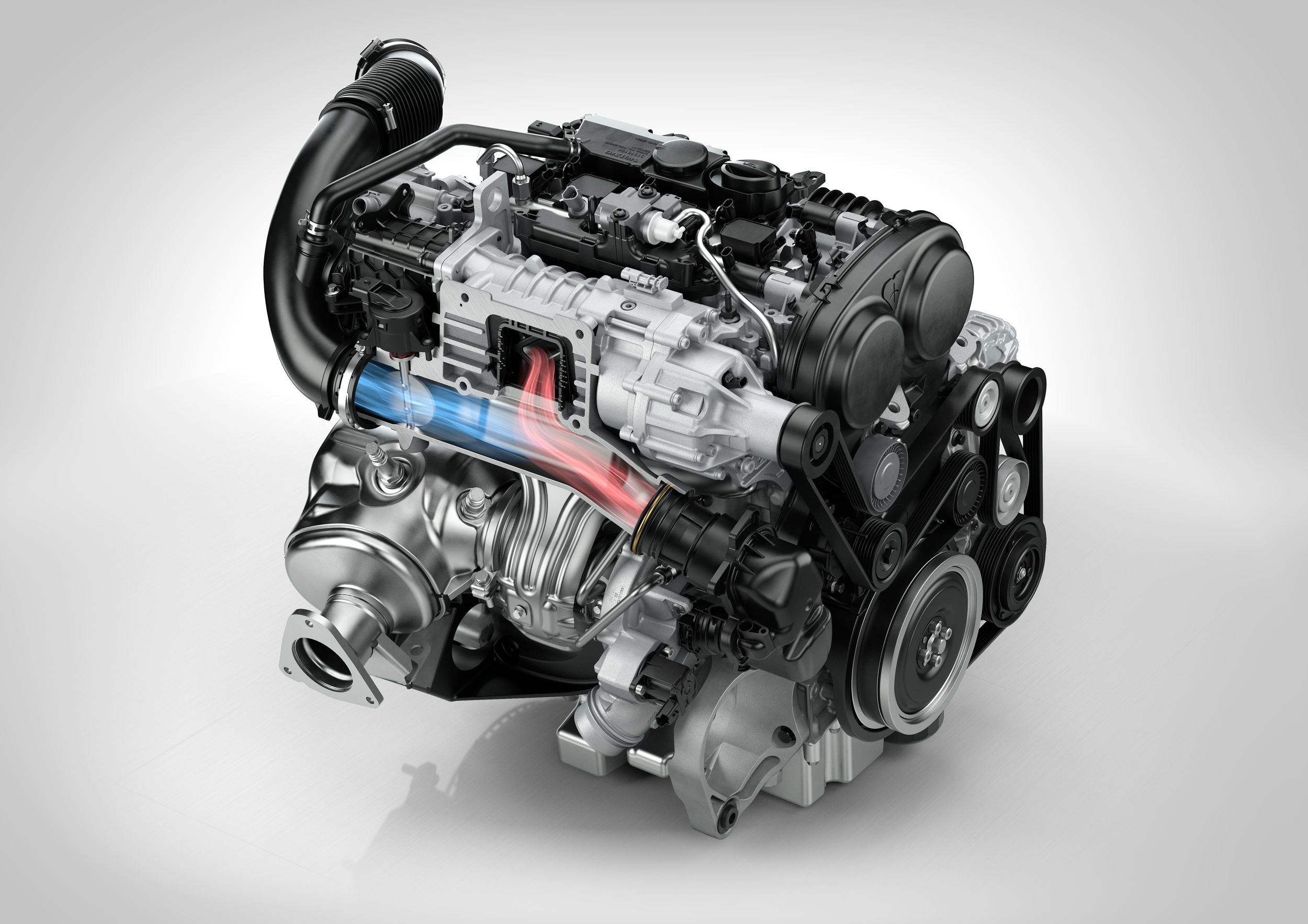

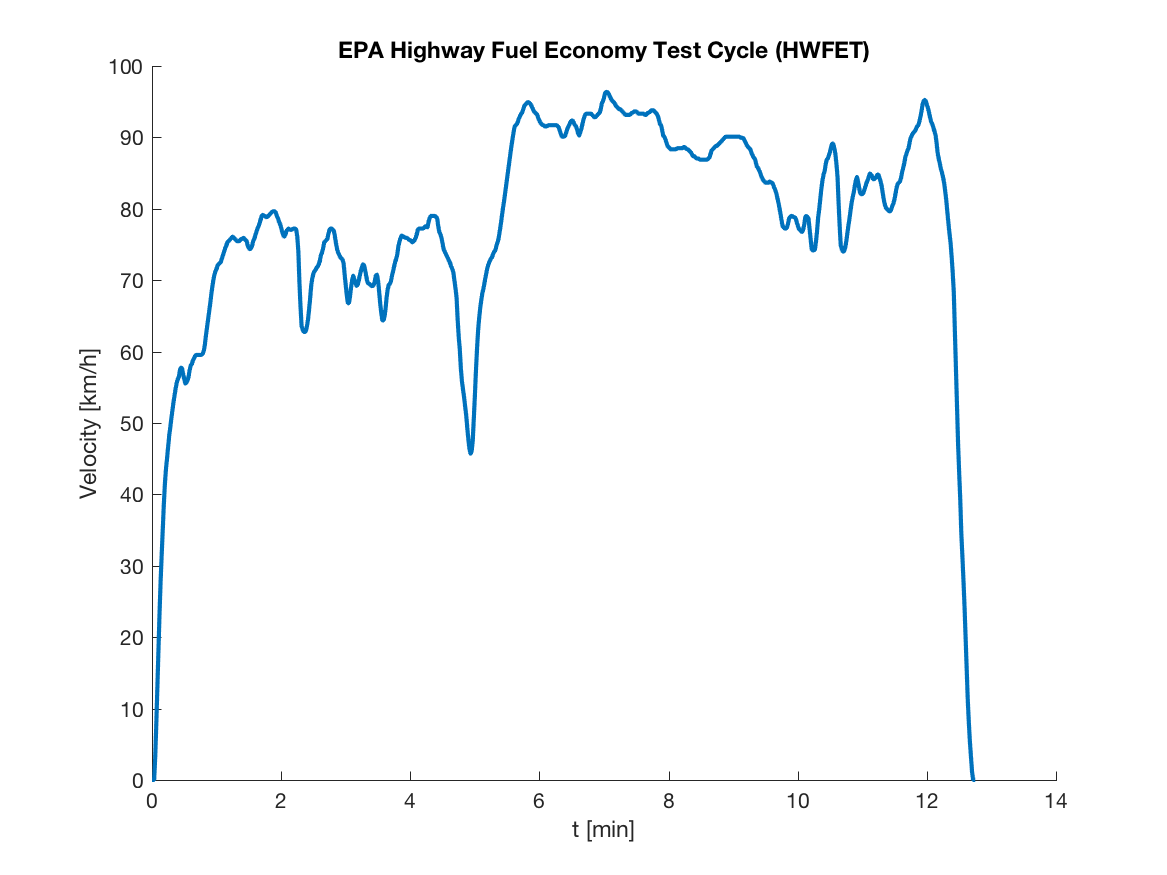

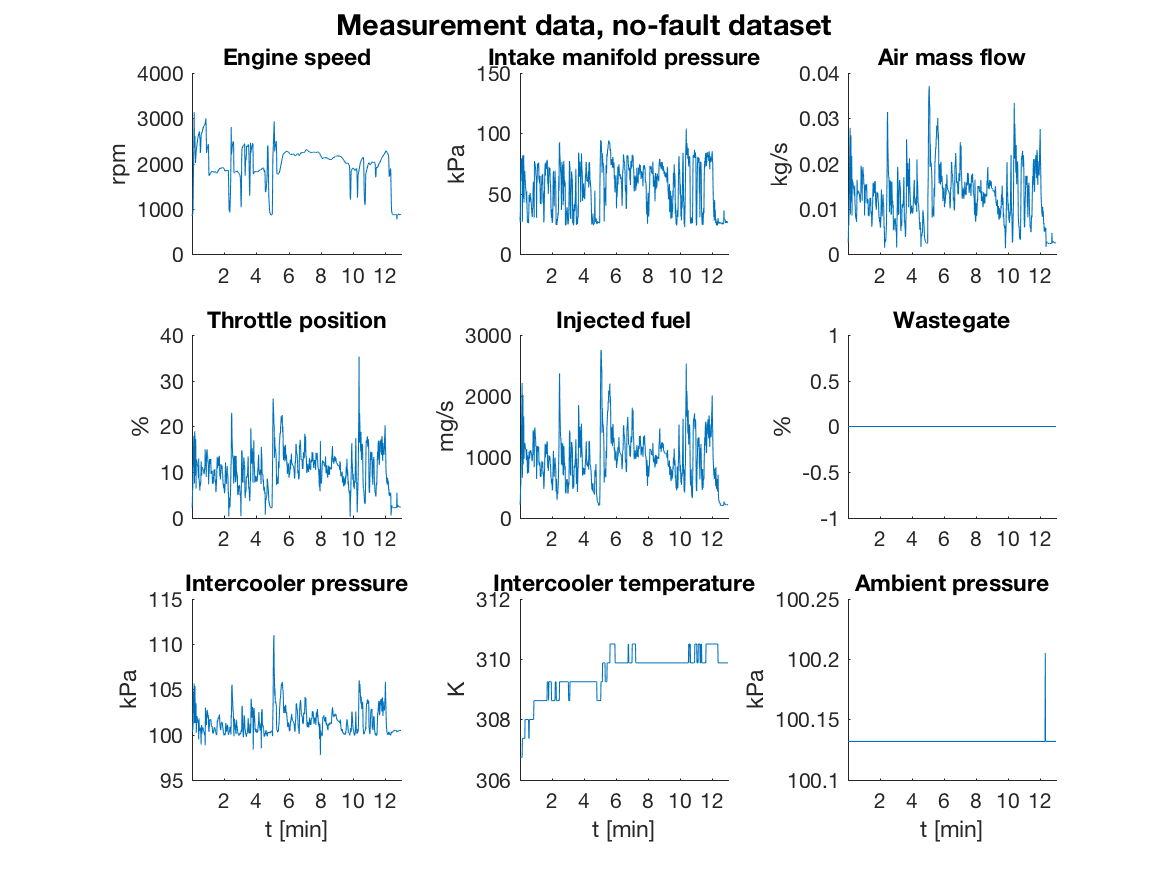

Measurement data is obtained in an engine test cell at Vehicular Systems <http://www.fs.isy.liu.se/>. The engine, a standard production engine, is equipped with a development control system and subjected to load conditions corresponding to a car driving the EPA Highway Fuel Economy Test Cycle. Engine operation is thus transient, although not violently so, and correct handling of dynamic engine behavior in the diagnosis system is essential. The objective is then to, during normal operation, detect and isolate the faults with a given false alarm probability and optimize detection performance.

Modelling

The model is a differential-algebraic (DAE) model, based on the model developed in

Eriksson, L. (2007). Modeling and control of turbocharged SI and DI engines. Oil & Gas Science and Technology - Rev. IFP, 62(4), 523–538.

The model-object is created by a statement

import faultdiagnosistoolbox as fdt
model = fdt.DiagnosisModel(modeldef, name='VEP4')

where the dict modeldef is a model definition containing the keys

• x - list of names of unknown variables

• f - list of names of fault variables

• z - list of names of known variables

• parameters - list of parameter names

• rels - list with model equations

In addition, the model relations/equations are written directly as symbolic expressions. For example, a restriction model using an external function W_af_fun, a control volume with a mass state m_im and a temperature state T_im, and a measurement equation for the air mass flow W_af can be written as

# Declare model equations
modeldef['rels'] = [
# ...
# Air filter restriction
-W_af + W_af_fun(p_amb, p_af, plin_af, H_af, T_amb) + fp_af,

# Control volume, air intake
-p_im + m_im * R_air * T_im / V_im,
-dmdt_im + (W_th - W_ac) + fw_th,
-dTdt_im + (W_th * cv_air * (T_imcr - T_im) + R_air * (T_imcr * W_th - T_im * W_ac)) / (m_im * cv_air),
fdt.DiffConstraint('dmdt_im', 'm_im'),
fdt.DiffConstraint('dTdt_im', 'T_im'),

# Measurements
-y_W_af + W_af + fyw_af,        # Air mass-flow after air filter

# ...
]

The toolbox supports structural-only models, but here a model with symbolic model equations is used since the objective of the use case is to go from model to generating code for residual generators and then expressions for the model equations are needed. When the modeldef dict has been defined and the model object has been created it is time to explore the model. Basic model information is obtained using the Lint class method

>> model.Lint()
Model: Engine model

Type: Symbolic, dynamic

Variables and equations
    90 unknown variables
    10 known variables
    11 fault variables
    94 equations, including 14 differential
    constraints

Degree of redundancy: 4
Degree of redundancy of MTES set: 1

Model validation finished with 0 errors and
0 warnings.

The model structure, i.e., which variables appear in which constraints, are extensively used by the methods implemented in the toolbox. This model structure is automatically inferred from the model equations and the PlotModel class method can be used to visualize the model structure. It shows the equations on the vertical axis and the variables on the horizontal axis. A dot represents that a variable appears in the corresponding equation. Blue, red, and black dots represent unknown, fault, and known variables respectively.

_, ax = plt.subplots()
model.PlotModel(ax=ax, verbose=False)

Diagnosability Analysis

Now, with a defined model there are many diagnosis analyses that can be performed on the model structure only. For example, it is possible to find out if the model contains enough redundancy to detect and isolate faults, i.e., answer diagnosability questions like

“Can I detect this fault?” or “Can I isolate this fault from that fault?” or “What isolation performance is possible using only direct application of state-observers?”

Such non-trivial questions can be answered using structural techniques giving best-case results.

A canonical decomposition

A key tool in structural analysis for fault diagnosis is the Dulmage-Mendelsohn decomposition <http://cms.math.ca/10.4153/CJM-1958-052-0>. To plot the decomposition, extended with fault variables and equivalence classes as described in (Krysander and Frisk, 2008) <https://doi.org/10.1109/TSMCA.2008.2003968>, is computed using the PlotDM class method

_ = model.PlotDM(ax=ax, fault=True, eqclass=True)

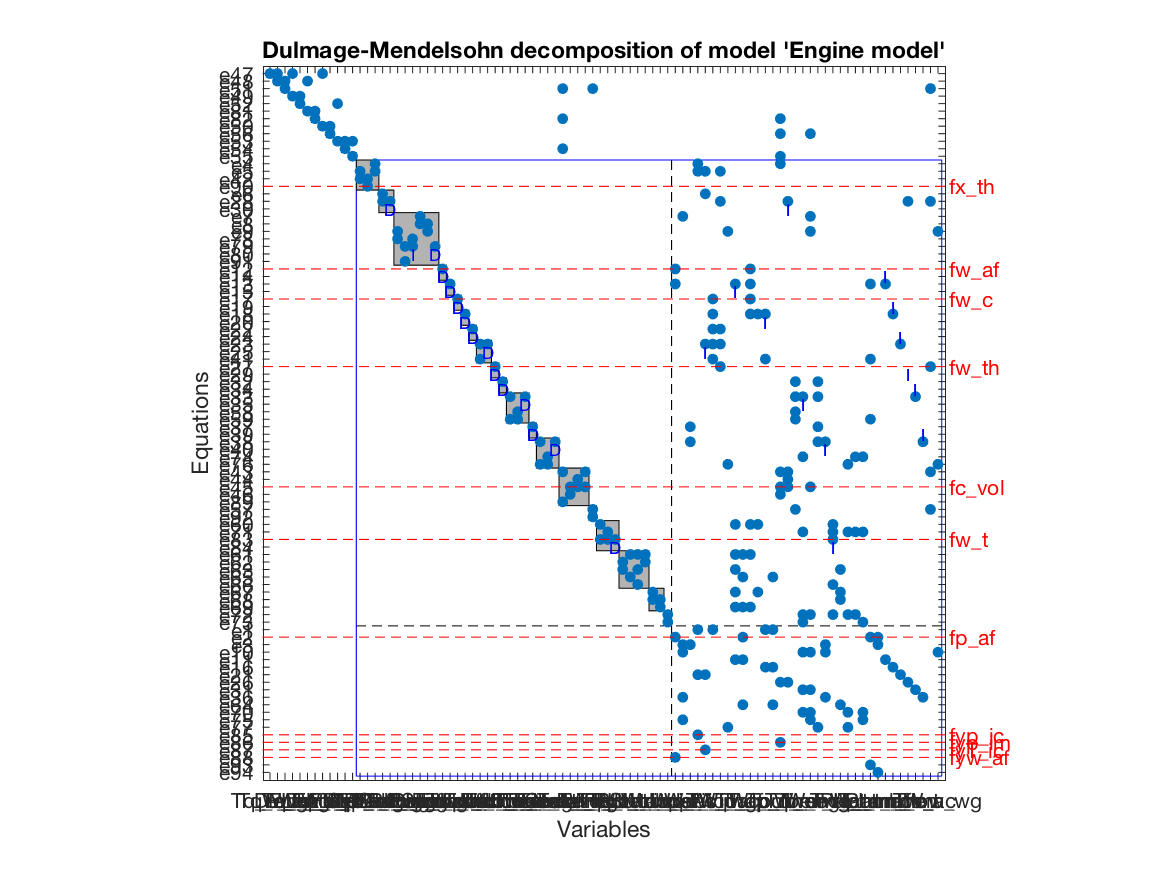

which results in the plot

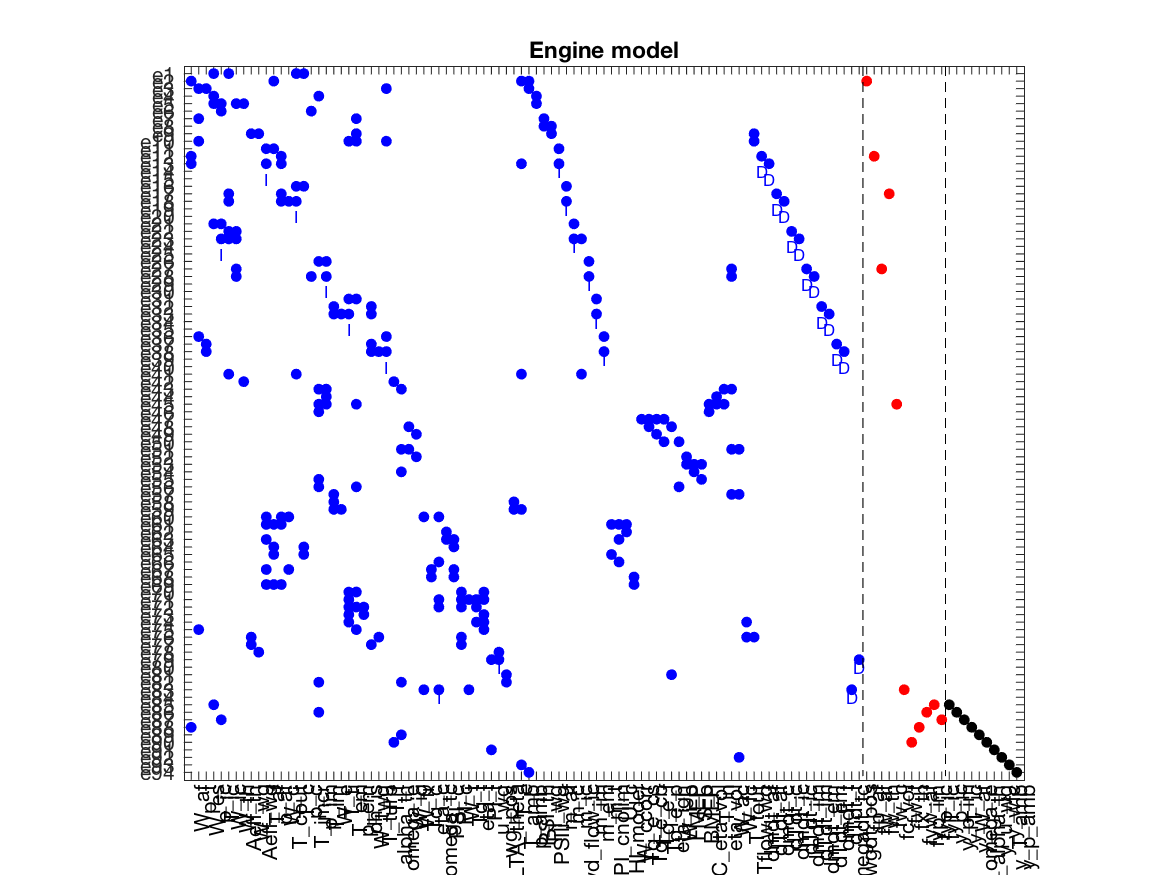

It is a Dulmage-Mendelsohn decomposition with an additional canonical decomposition of the overdetermined part. The overdetermined part is marked with a blue rectangle and faults entering in equations contained in the overdetermined part are structurally detectable. The set of equations in the overdetermined part is partitioned into equivalence classes, indicated by gray-shaded rectangles in the figure, with the property that all faults appearing in the same equivalence class is not structurally isolable from each other.

Fault isolability Matrices

Although the canonical form is informative, it contains a lot of details. Another form of illustrating single fault isolability performance is the isolability matrix computed using the class method IsolabilityAnalysis as

model.IsolabilityAnalysis()

A dot in position _(i,j)_ indicates fault _j_ will be a diagnosis if fault _i_ is the present fault. Thus a diagonal matrix represents full single fault isolability, i.e., all single faults are uniquely structurally isolable in the engine model.

Low structural index is an interesting class of models since, for example, for low-index models established techniques like state-observers and Extended Kalman Filters can be directly applied while this is not true for high-index models. The isolability of faults when only using low-index approaches can be computed by

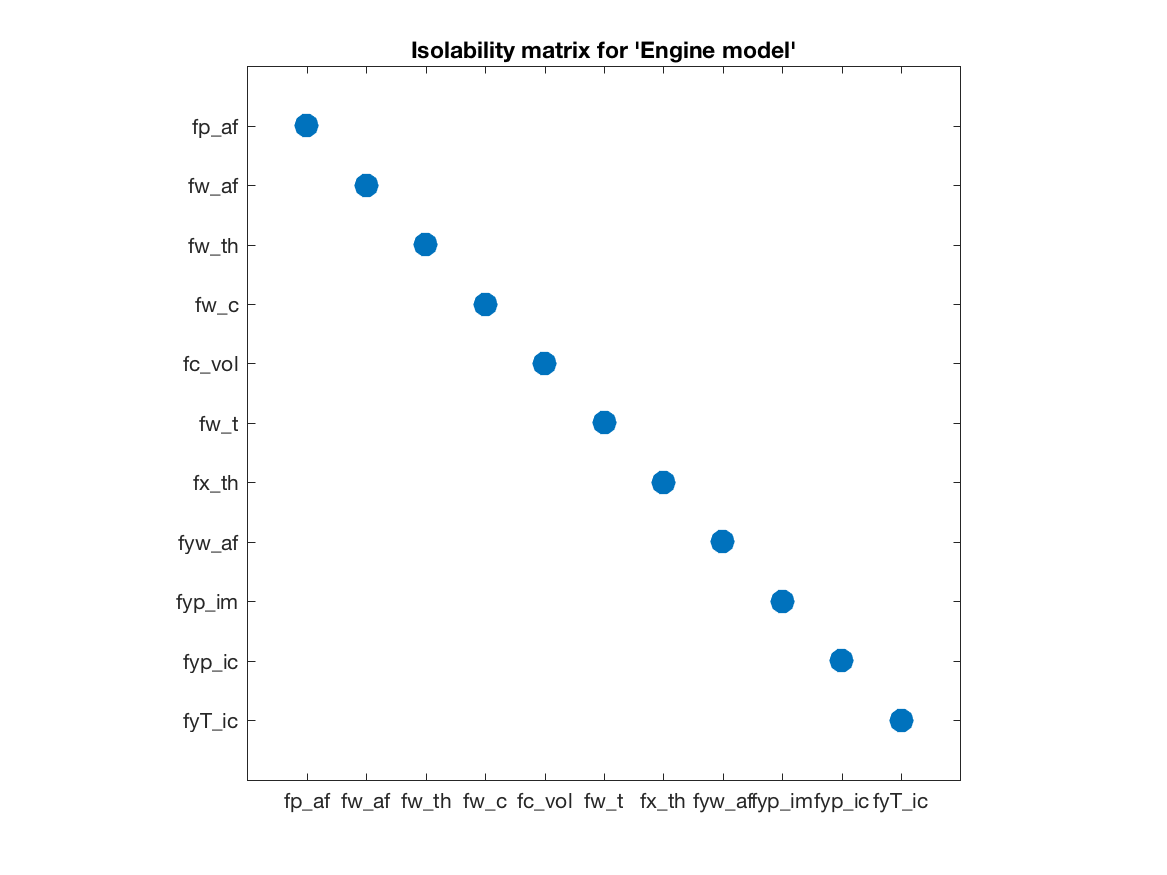

model.IsolabilityAnalysis('causality','int')

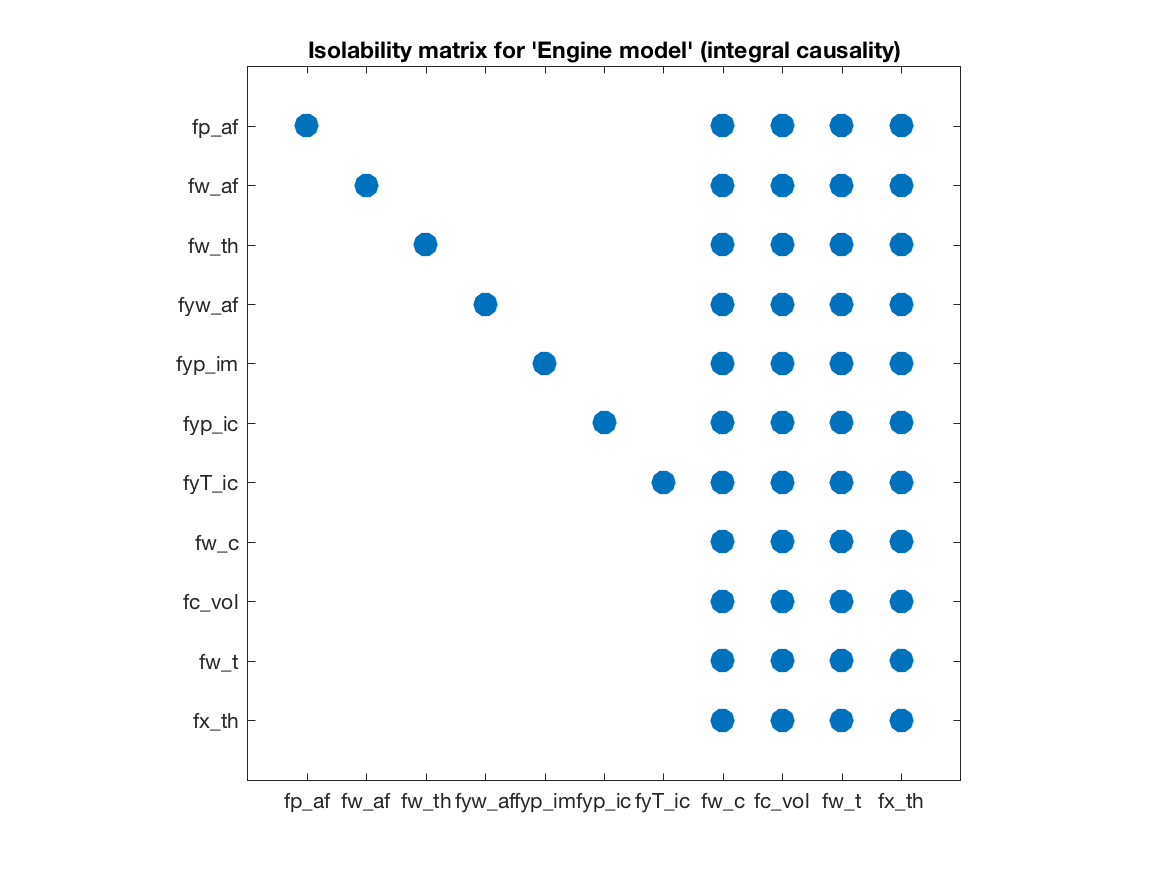

The isolability matrix shows how the fault isolability performance degrades, which is expected if the residual generation techniques are limited to pure integration-based methods. These isolability matrices give a direct way to early evaluate the possible isolation performance of the model and with the given measurements. Of course, these are structural results meaning that even if the isolability matrix indicates that all faults are uniquely isolable, it is not certain that this is realizable in the real application with a required detection and false-alarm probabilities. But, it gives an important first indication of what is possible.

Residual Generator Analysis and Design

One successful approach to residual generation is to find testable sub-models and then, based on such sub-models, design residual generators. The first step is then to make a complete search for testable sub-models, here [Minimally Structurally Overdetermined (MSO)](https://doi.org/10.1109/TSMCA.2007.909555) set of equations. This step is based only on the structure of the model and in the engine model there are 4496 MSO sets. This means that, even with a redundancy degree of only 4, there are several thousand different sub-models that can be tested independently. In the software, to compute the set of MSO sets use the MSO class method as

msos = model.MSO()

The output msos is a list of index vectors to equations in the model. It is possible to compute the isolability of all MSO sets as

model.IsolabilityAnalysisArrs(msos)

that is equal to the isolability matrix computed earlier.

Low-index and observability properties of sub-models

The toolbox supports sequential residual generator design and for models with high differential-index such direct residual design is not always appropriate since numerical differentiation of measurement signals is needed. The structural differential index can be determined by efficient structural algorithms and the MSO sets with low-index can be found using the IsLowIndex class method as

low_index_msos = [m for m in msos if model.IsLowIndex(m)]

For the engine model, there are 206 low-index MSO sets out of the 4496. Performing the call

model.IsolabilityAnalysisArrs(low_index_msos)

will give the isolability properties of the low-index MSO sets previously computed; the isolability matrix with integral causality.

If a state-observer technique is to be used, observability of the sub-models is of importance. Structural observability can easily be checked, for all MSO sets, with the class method IsObservable. In the engine model, all MSO sets are structurally observable.

Sequential residual generation

There are many ways to design a residual generator based on a model with redundancy. Sequential residual generation is one direct and simple way, especially if the model is of low differential index. An MSO set have exactly one more equation than the number of unknown variables and this means that if one equation is used as the residual equation, the remaining equations will form an exactly determined system of equations. Then, the exactly determined set of equations is solved for all unknown variables numerically online and the insertion of all computed variables in the residual equation then produces a residual. For the engine model there were 4496 different MSO sets and previous analysis gives that there exists 206 low-index sub-models. From these 206 sub-models the toolbox can automatically generate a large number, here 728, of candidate residual generators with integral causality. Using the IsLowIndex class method, it is concluded that MSO number 1650 with its 74:th equation as a residual equation constitutes a low-index problem. A matching, i.e., a computational path for the exactly determined model is found using the class method Matching and then the method SeqResGen can be used to generate Python or C-code.

mso = msos[1649]
red = mso[73]
m0 = [e for e in mso if e != red]
resName = f"residual_1"
Gamma = model.Matching(m0)
model.SeqResGen(
    Gamma,
    red,
    resName,
    language="C",
    batch=True,
    user_functions=VEP4Engine.ext_funs,
    external_headers=["extmodelfuns.h"],
    external_src=["extmodelfuns.cc"],
)

This generates a file residual_1_setup.py and C-code that can be compiled into a C extension module, callable directly from Python. The generated code can be compiled using the following command from a terminal

% python residual_1_setup.py build_ext --inplace

The next step is to evaluate the generated code for a set of such residuals on measurement data.

Evaluation on Test Cell Measurements

To illustrate performance on measurement data we consider only 4 of the 11 faults; faults in the air-flow sensor fy_waf, the intake manifold pressure sensor fyp_im, the intercooler pressure sensor fyp_ic, and the intercooler temperature sensor fyT_ic. Measurement data were collected for the fault-free and 4 faulty cases, then in total 5 data sets, during a 12-minute long EPA highway fuel economy test cycle. Sample measurements from the fault-free case are

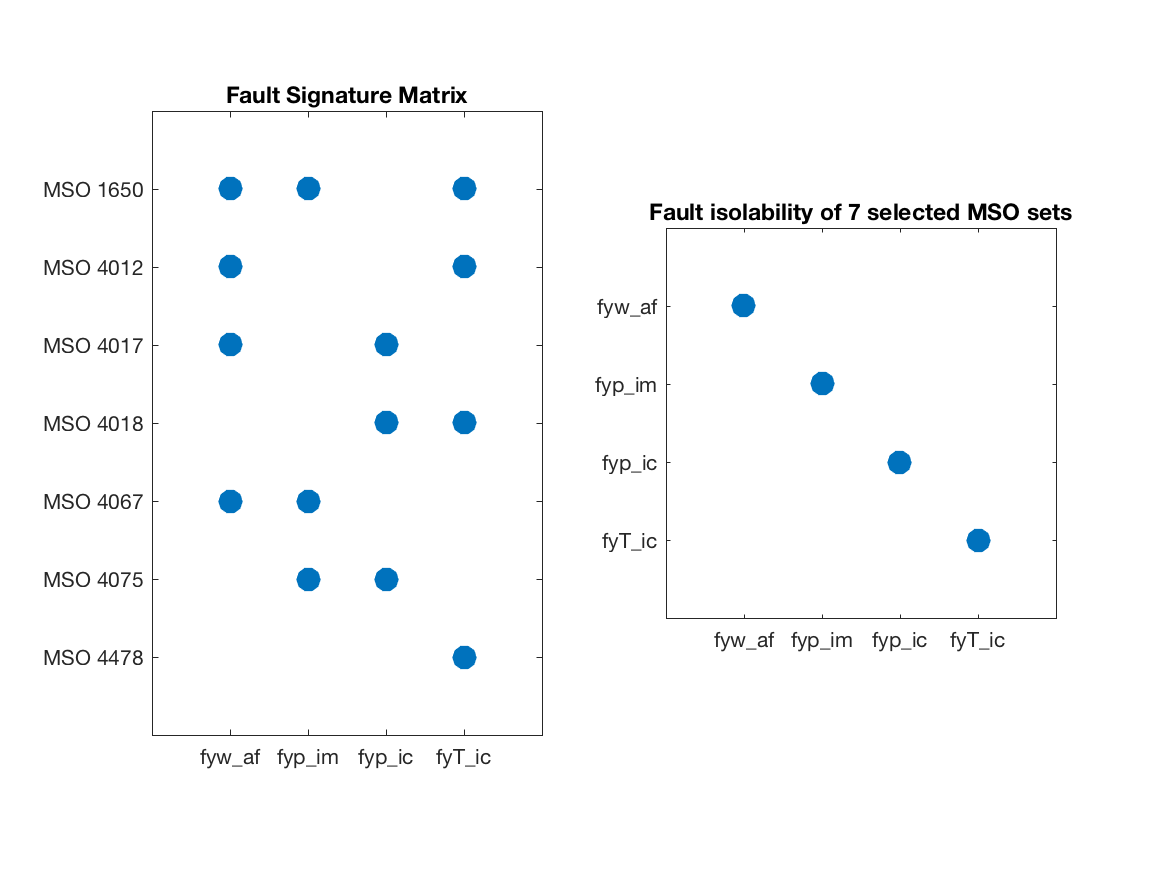

Out of the 728 residuals, only a few are needed for isolating between the 4 faults and using a data-driven test selection procedure not described here, 7 residuals were in the end chosen for this illustration. Using class methods FSM and IsolabilityAnalysisArrs, the fault signature matrix and the isolability matrix of the selected 7 residuals are

As can be seen, all single faults are structurally isolable.

Running residual generators

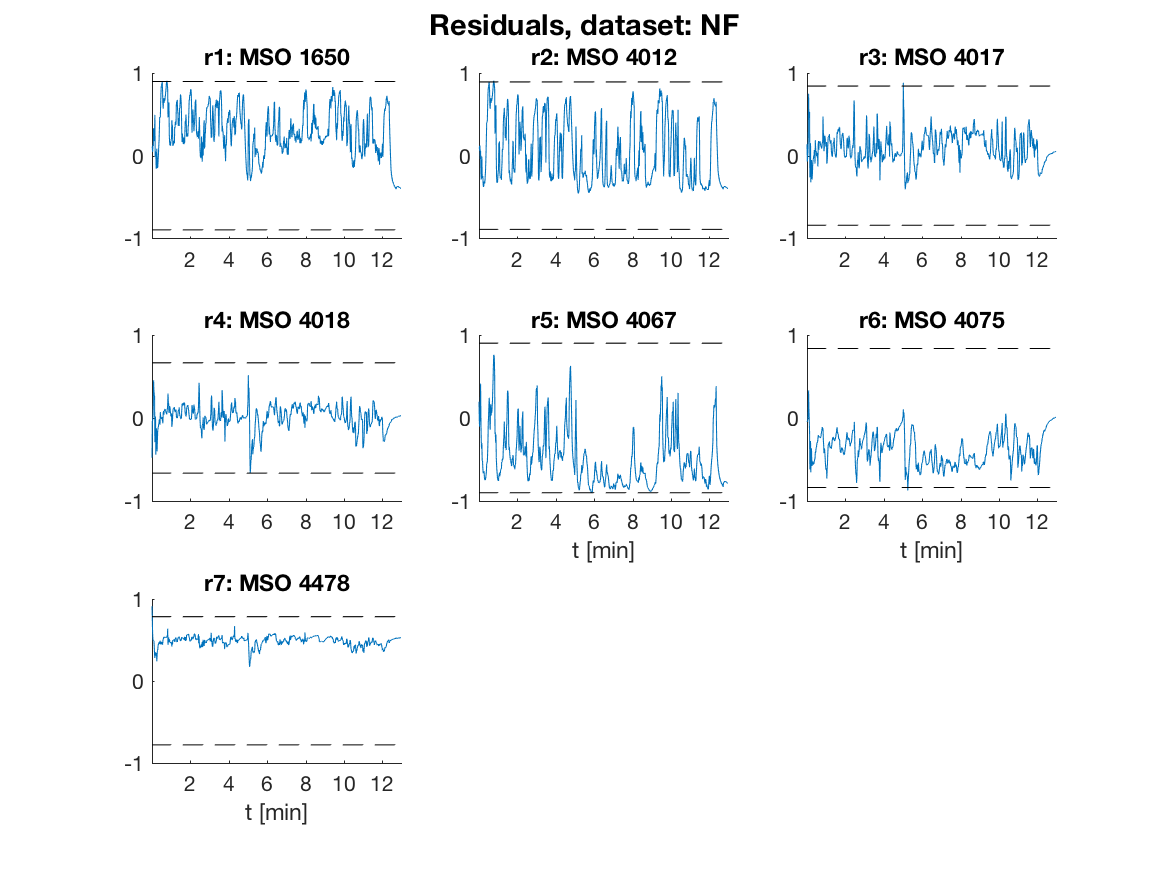

The generated code for the 7 residuals are run on the 5 data sets and the residuals in the fault-free case are shown in the plot below where the dashed lines correspond to thresholds selected to achieve a 1% false alarm probability.

The generated code from last section is run using a single Python call

r = residual_1(z, state_init, params, Ts)

where z is a matrix with the measurements, the struct state_init gives the initial state, params the model parameters, and Ts the sampling time. The residuals for data with a fault in the air-flow sensor are

Fault Isolation Performance

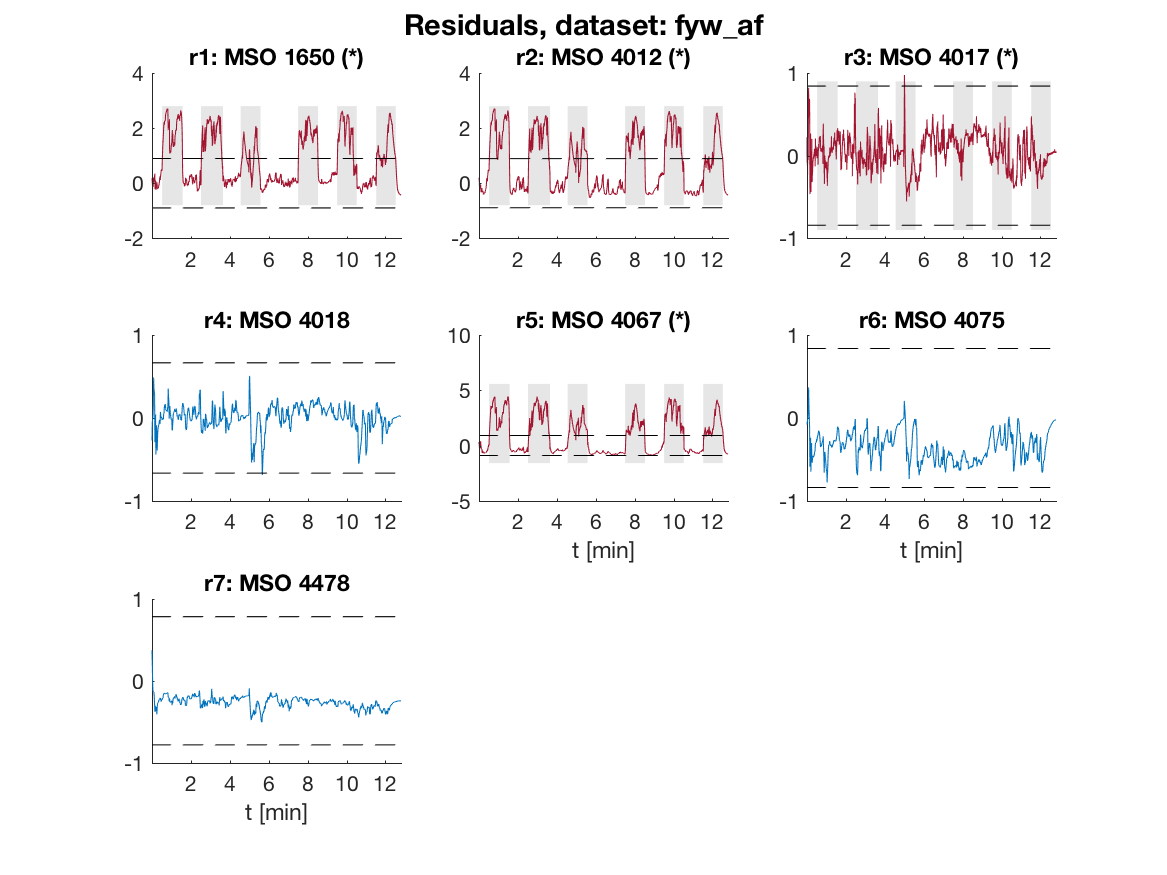

According to the fault signature matrix above, the red-colored residuals should be sensitive to the air-flow sensor fault but not the blue-colored residuals. The fault is present during the gray shaded intervals, i.e., the fault is injected intermittently. The blue-colored residuals are not sensitive to the fault as expected and residuals 1, 2, and 5 are above the dashed thresholds when the fault is present. Residual 3 should be sensitive to this fault but the fault-to-noise ratio is apparently too low for this fault, but is selected for its ability to detect the fault fyp_ic.

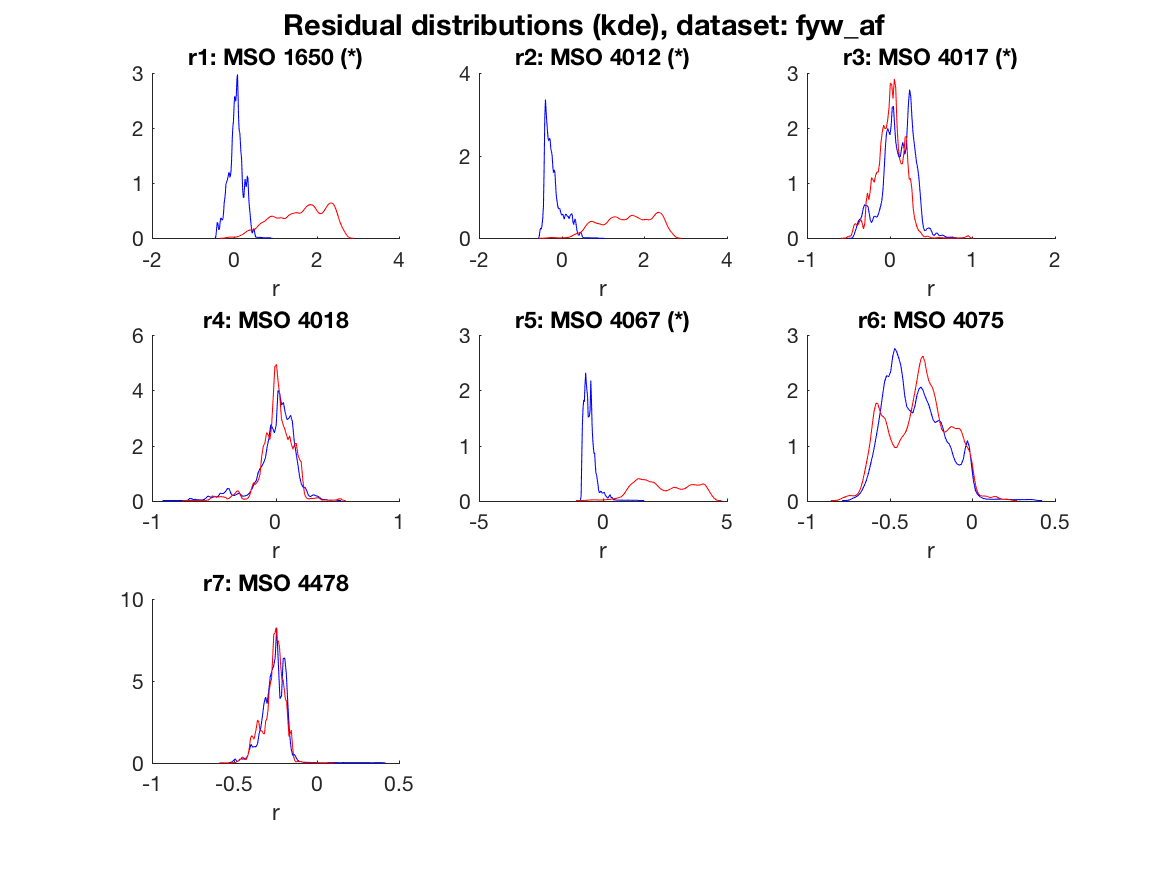

The figure below shows in blue the distributions of the residuals in the fault-free case and in red the distributions of the residuals for an air-flow sensor fault. It is clear that residuals 1, 2, and 5 are good at detecting this fault since the residual distributions change significantly.

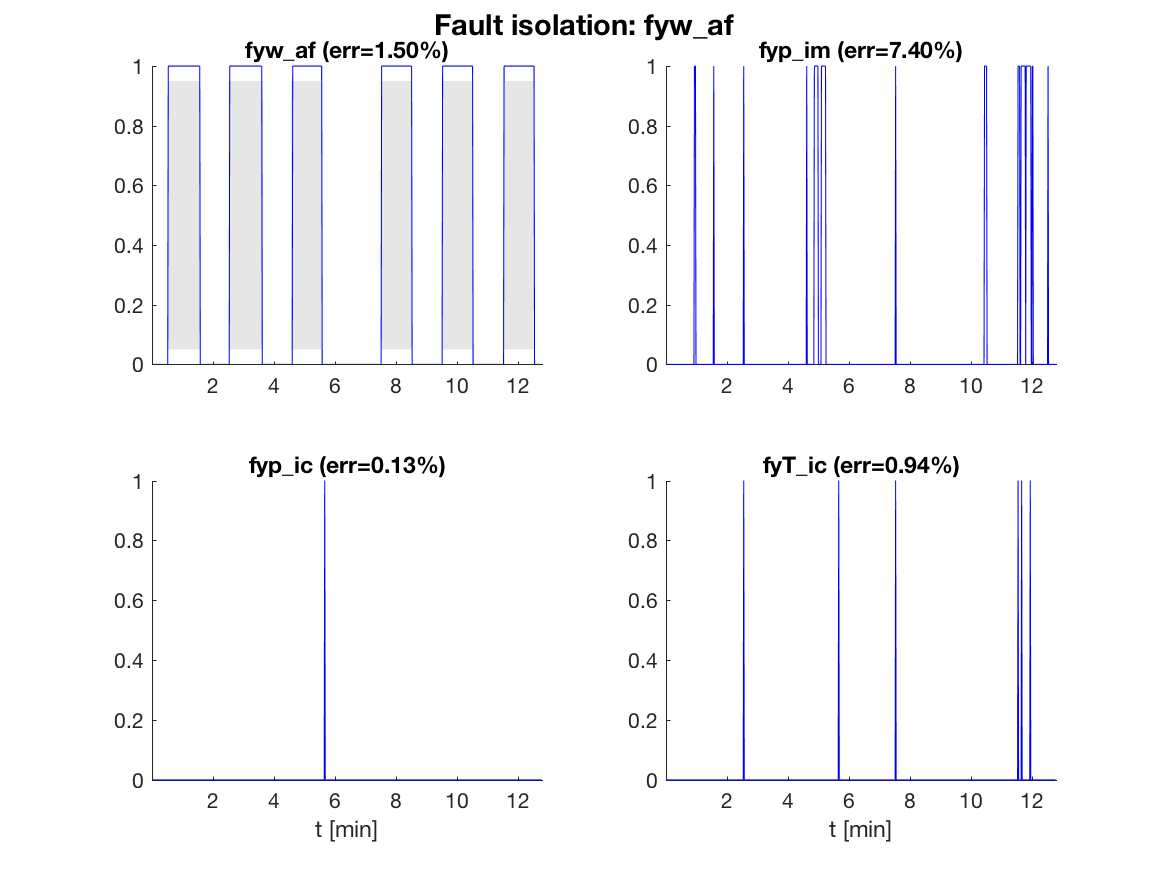

Given the residuals and thresholds, the consistency-based diagnosis candidates as a function of time, in the case of an air mass-flow sensor fault, are

In the figure, a 1 means that the fault is a diagnosis and a 0 that it is not. The percentage of time where there is an isolation error is shown above each plot. Here, no post-processing is performed, and the error can be improved by post-filtering or applying adaptive thresholds, maybe at the cost of delayed detection. It is clear that fault isolation reliably indicates the correct fault fyw_af and isolates reliably from fyp_ic and fyT_ic but has a little more difficulty isolating from fault fyp_im.

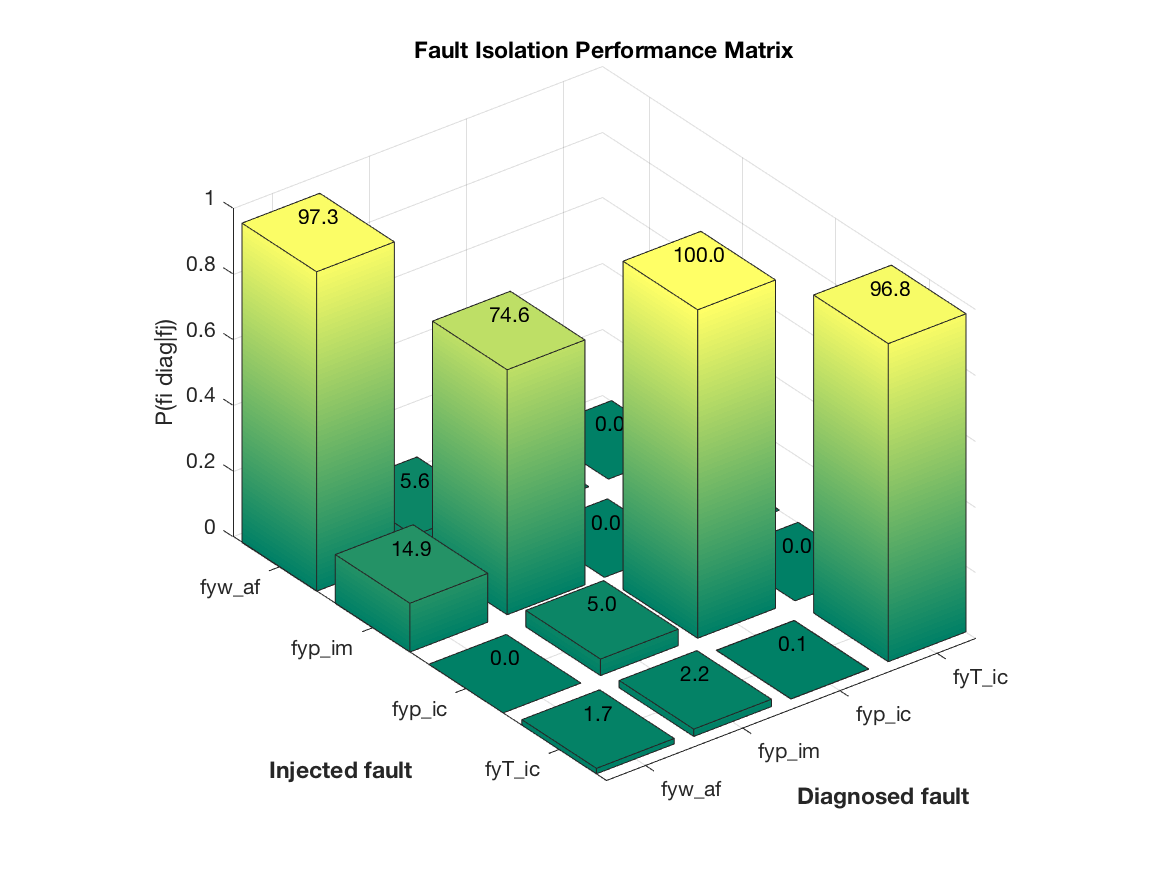

To summarize the performance of the generated diagnosis system, the confusion matrix is illustrated using a 3D plot

Here, the probability of correct isolation is plotted, and a perfect system would correspond to a diagonal with probability 1. It is clear from the figure that faults fyw_af, fyp_ic, and fyT_ic can be reliably isolated. Fault fyp_im however can be reliably detected but is sometimes difficult to isolate from fyw_af.
